Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

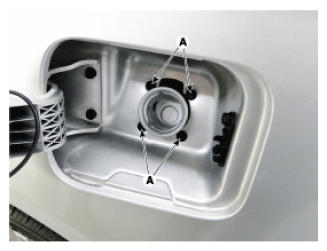

  2. Open the fuel filler door and then remove the filler-neck installation screw (A).
    G12793295Courtesy of HYUNDAI MOTOR AMERICA
  3. Lift the vehicle.
  4. Remove the rear-LH wheel, tire, and the inner wheel house.
  5. Remove the rear sub frame.

    (Refer to "REAR SUB FRAME ")

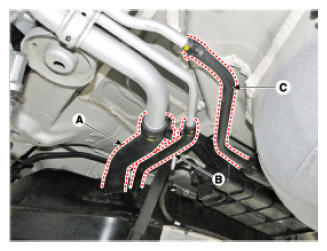

  6. Disconnect the fuel filler hose (A) and the leveling hose (B).
  7. Disconnect the vent hose (C).
    G12793296Courtesy of HYUNDAI MOTOR AMERICA

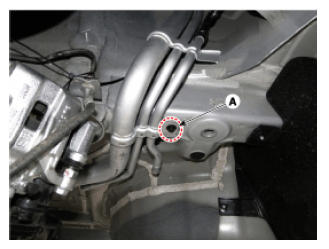

  8. Remove the filler-neck assembly from the vehicle after removing the bracket installation bolt (A).
    G12793297Courtesy of HYUNDAI MOTOR AMERICA
