Home >> Hyundai >> 2018 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System (PHEV) >> Air Cleaner >> Components And Components Location >> Components

Components And Components Location: Components

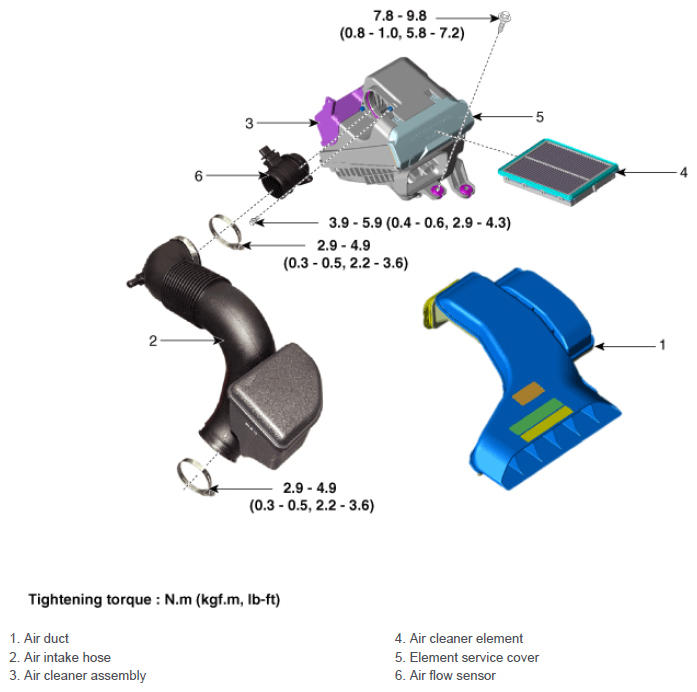

Fig 1: Air Cleaner Components Location With Torque Specification

G12786797

Courtesy of HYUNDAI MOTOR AMERICA
