Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower cover,

    (Refer to "CRASH PAD ")

  3. Disconnect the crash pad side switch assembly.
    G12794256Courtesy of HYUNDAI MOTOR AMERICA

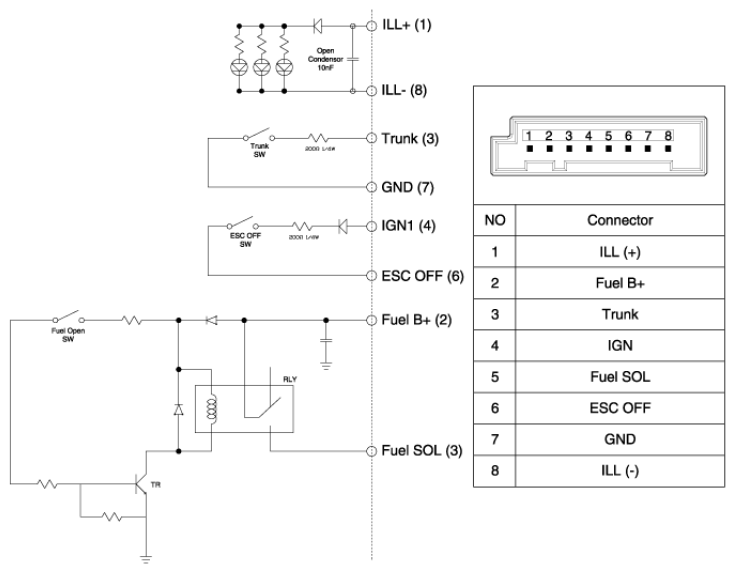

  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    G12794257Courtesy of HYUNDAI MOTOR AMERICA
