Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the air-bag module.

    (Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  3. Remove the steering wheel.

    (Refer to "STEERING WHEEL ")

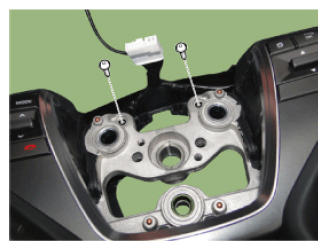

  4. Remove the screw from in the steering wheel.
    G12786930Courtesy of HYUNDAI MOTOR AMERICA

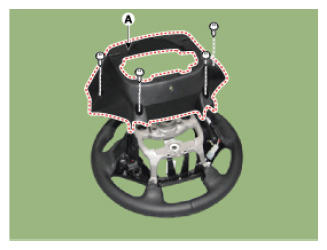

  5. Remove the steering back cover (A).
    G12786931Courtesy of HYUNDAI MOTOR AMERICA

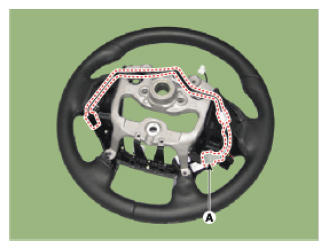

  6. Disconnect the heated steering connector (A).
    G12786932Courtesy of HYUNDAI MOTOR AMERICA

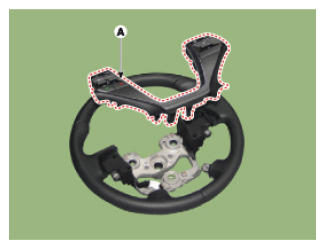

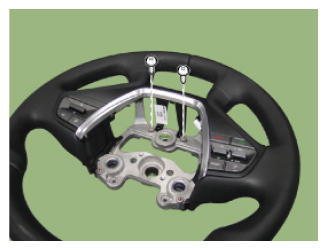

  7. Remove the remote control switch (A) after loosening the screws.
    G12786933Courtesy of HYUNDAI MOTOR AMERICA
    G12786934Courtesy of HYUNDAI MOTOR AMERICA
