Circuit Diagrams: Notes

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe XL and 2017 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

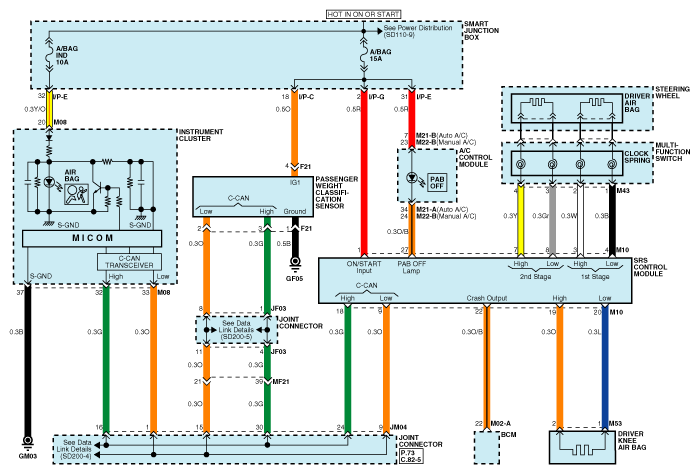

Fig 1: Seat Belt Buckle Switch Diagram (1 Of 3)
G12033189Courtesy of HYUNDAI MOTOR AMERICA

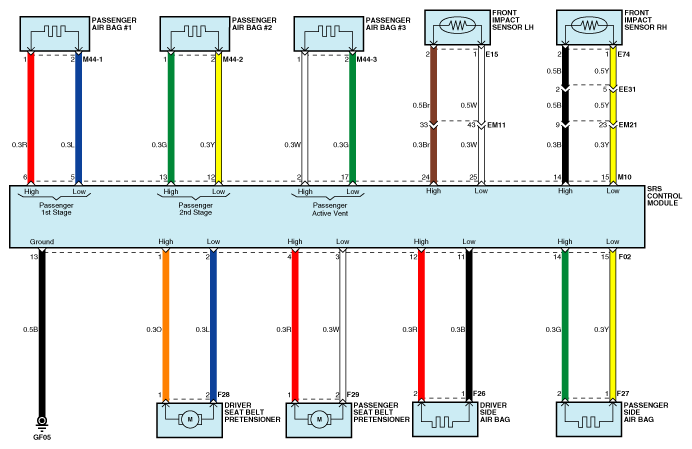

Fig 2: Seat Belt Buckle Switch Diagram (2 Of 3)
G12033190Courtesy of HYUNDAI MOTOR AMERICA

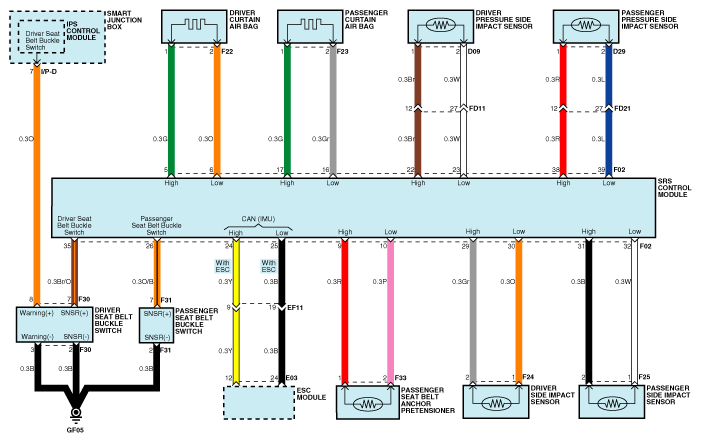

Fig 3: Seat Belt Buckle Switch Diagram (3 Of 3)
G12033191Courtesy of HYUNDAI MOTOR AMERICA
