Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.

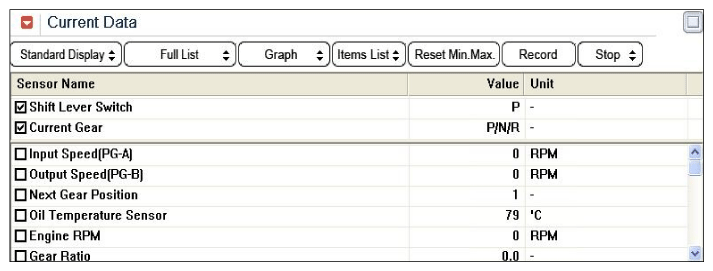

    Fig 1: Screen Display - Shift Lever P Range
    G12050323Courtesy of HYUNDAI MOTOR AMERICA

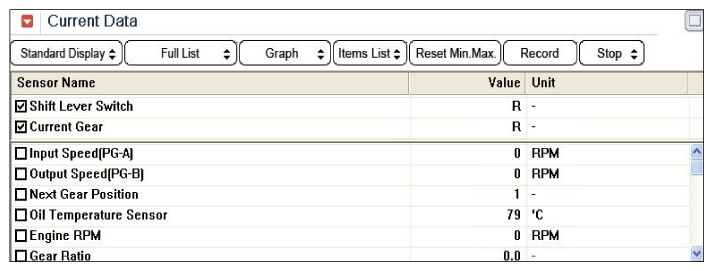

    Fig 2: Screen Display - Shift Lever R Range
    G12050324Courtesy of HYUNDAI MOTOR AMERICA

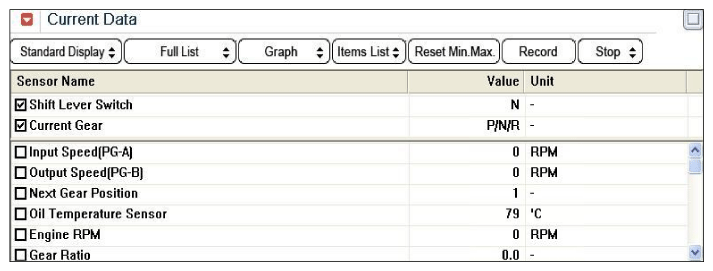

    Fig 3: Screen Display - Shift Lever N Range
    G12050325Courtesy of HYUNDAI MOTOR AMERICA

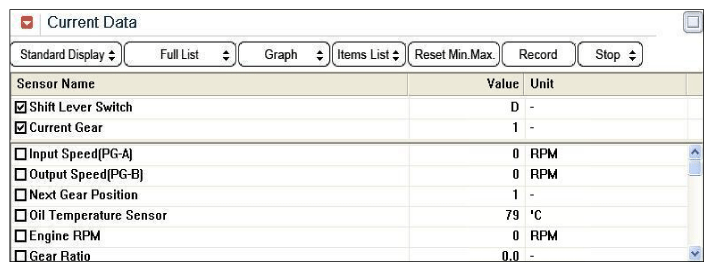

    Fig 4: Screen Display - Shift Lever D Range
    G12050326Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the Inhibitor switch value changed in specification?

    YES

    • P0705 can be happened When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor. so Do not replace "Inhibitor Switch" and Check the Alignment of Shift Cable.

    NO
