Components Location (1)

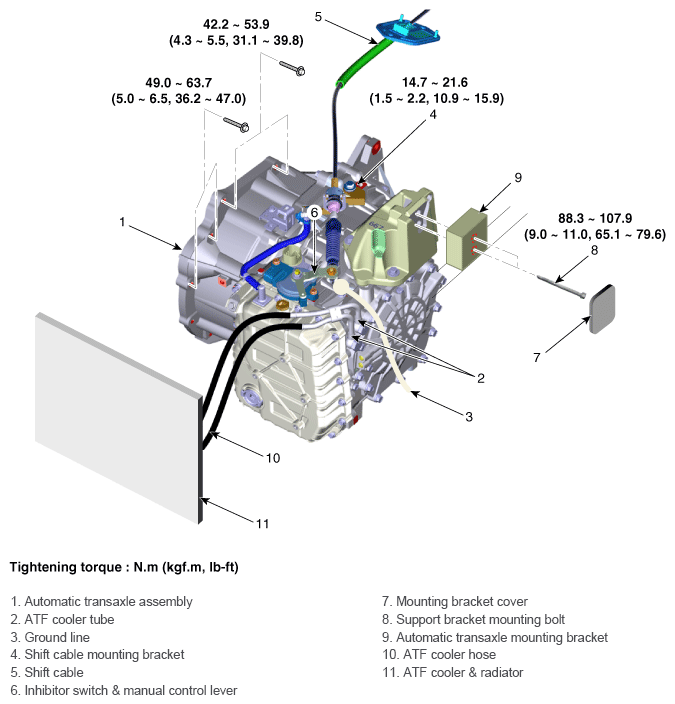

Fig 1: Automatic Transaxle Components With Torque Specification (1)

G12051161

Courtesy of HYUNDAI MOTOR AMERICA
