Home >> Hyundai >> 2018 >> Santa Fe Sport Base, AWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Power Liftgate Module >> Power Liftgate Unit >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

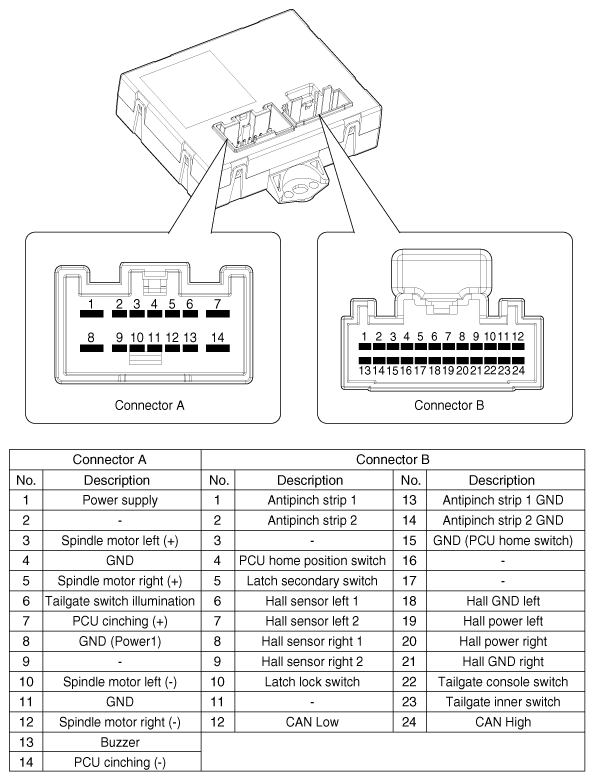

Fig 1: Power Liftgate Unit Connector Terminals

G12054774

Courtesy of HYUNDAI MOTOR AMERICA
