Calibration Mode

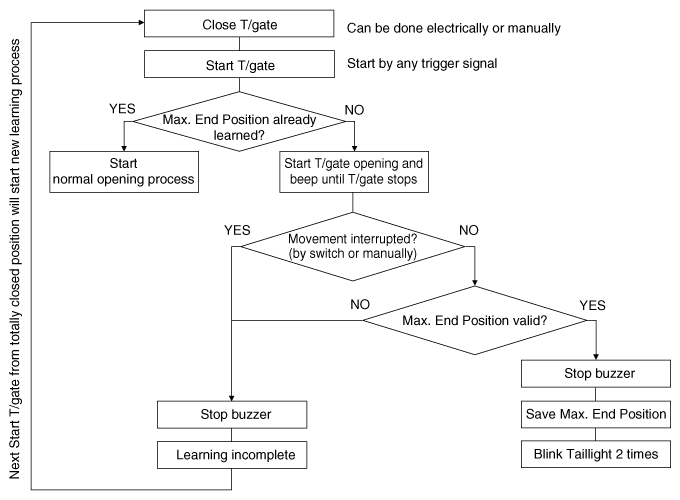

Fig 1: Tailgate Calibration Mode Flow Chart

G12054768

Courtesy of HYUNDAI MOTOR AMERICA
