Circuit Diagram

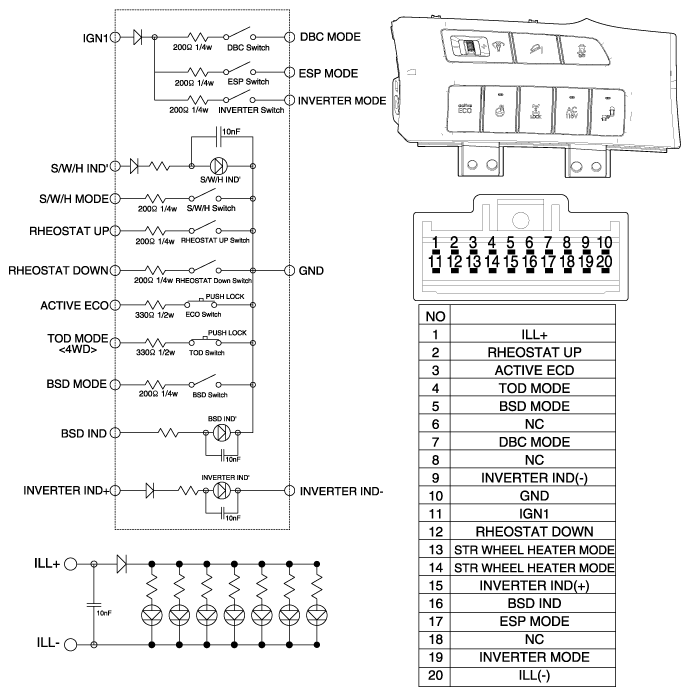

Fig 1: Blind Spot Detection Switch Circuit And Connector End View

G12055101

Courtesy of HYUNDAI MOTOR AMERICA
