Home >> Hyundai >> 2018 >> Ioniq Plug-In Hybrid >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System (PHEV) >> Inhibitor Switch >> Repair Procedures >> Inspection >> Inspection Flow

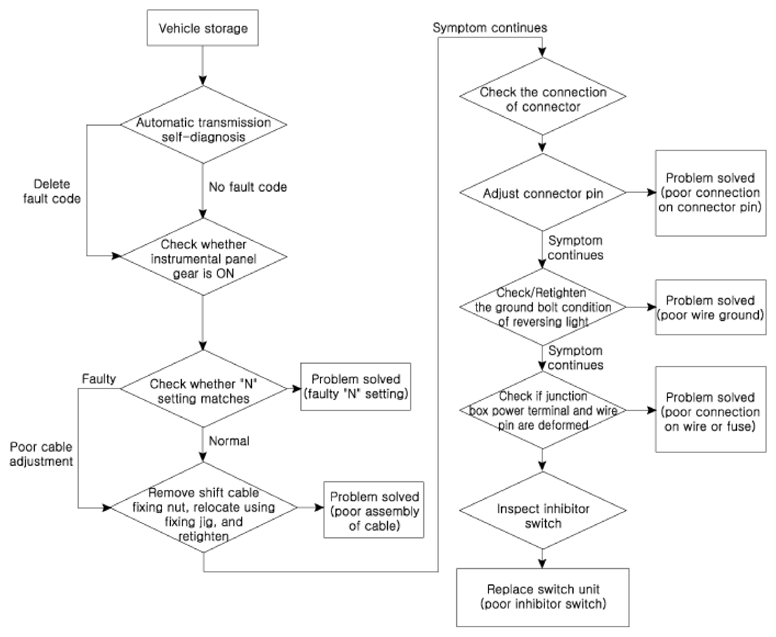

Inspection Flow

G12727504Courtesy of HYUNDAI MOTOR AMERICA
