Signal Waveform & Data

Courtesy of HYUNDAI MOTOR AMERICA

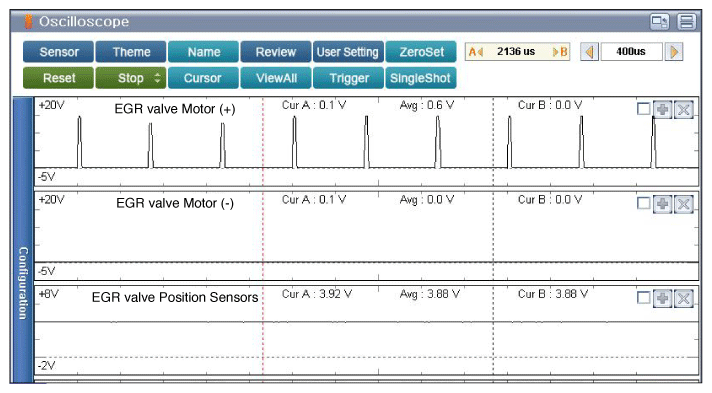

Fig.1) Normal waveform of EGR valve Motor & EGR valve Position Sensors at idle (engine "OFF")

Courtesy of HYUNDAI MOTOR AMERICA

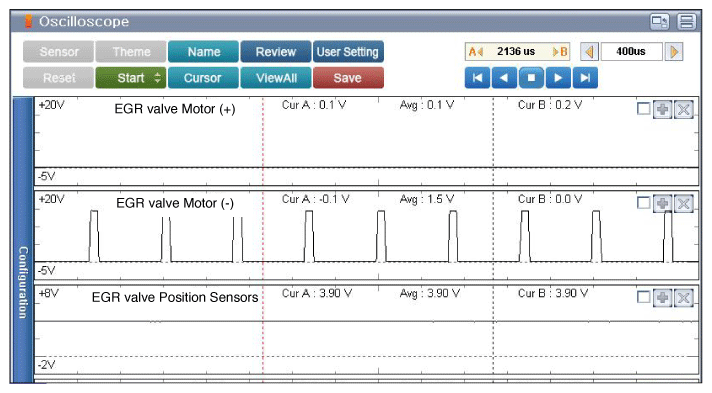

Fig.2) Normal waveform of EGR valve Motor & EGR valve Position Sensors at idle (engine "ON")
