[CVVT Oil Control Valve (Exhaust)]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air cleaner assembly

    (Refer to "AIR CLEANER ")

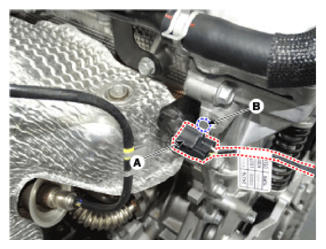

  3. Disconnect the CVVT oil control solenoid (A).
  4. Remove the installation bolt (B), and then remove the CVVT oil control solenoid from the engine.
    G12727205Courtesy of HYUNDAI MOTOR AMERICA
