Components And Components Location: Removal
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the front wheel and tire (A) from the rear hub.
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

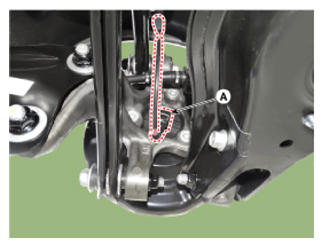

- Disconnect the rear wheel speed sensor connector (A).

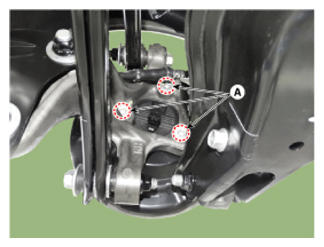

- Loosen the mounting bolts (A) and then remove the hub bearing.
Tightening torque:
88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb-ft)
- Installation in the reverse of removal.
