Signal Waveform & Data

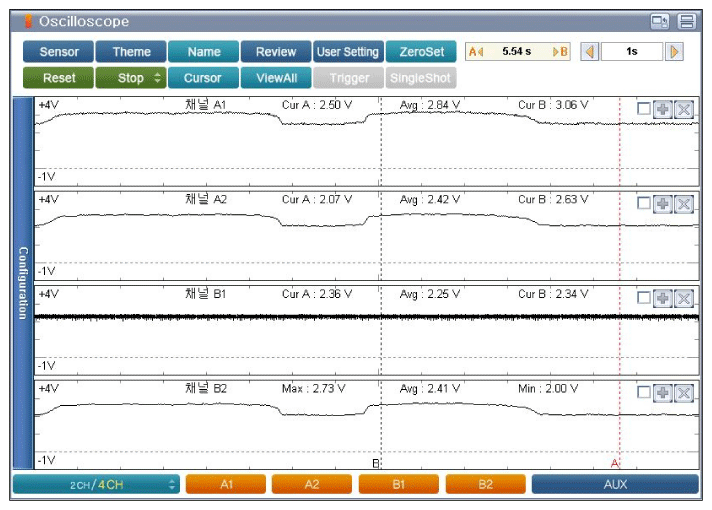

Fig 1: Scantool Display - Normal Waveform Of Front Heated Oxygen Sensor (S1) Engine Idle
G12029929Courtesy of HYUNDAI MOTOR AMERICA
