Repair Procedures: Inspection

  1. Disconnector the negative (-) battery terminal.
  2. Remove the overhead console lamp.

    (Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")

  3. Remove the overhead console cover after loosening the screws.
    Fig 1: Overhead Console Cover Screws
    G12023335Courtesy of HYUNDAI MOTOR AMERICA
  4. Check the continuity of between terminals.

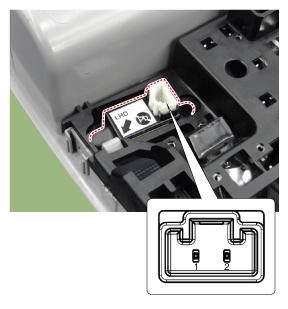

Fig 2: Checking Continuity Of Between Terminals (1 Of 2)
G12023336Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Checking Continuity Of Between Terminals (2 Of 2)
G12023337Courtesy of HYUNDAI MOTOR AMERICA
