Home >> Hyundai >> 2018 >> Elantra Value Edition >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual/Navigation (AVN) System >> AVN (Audio Video Navigation) Head Unit >> Component And Components Location >> Components

Component And Components Location: Components

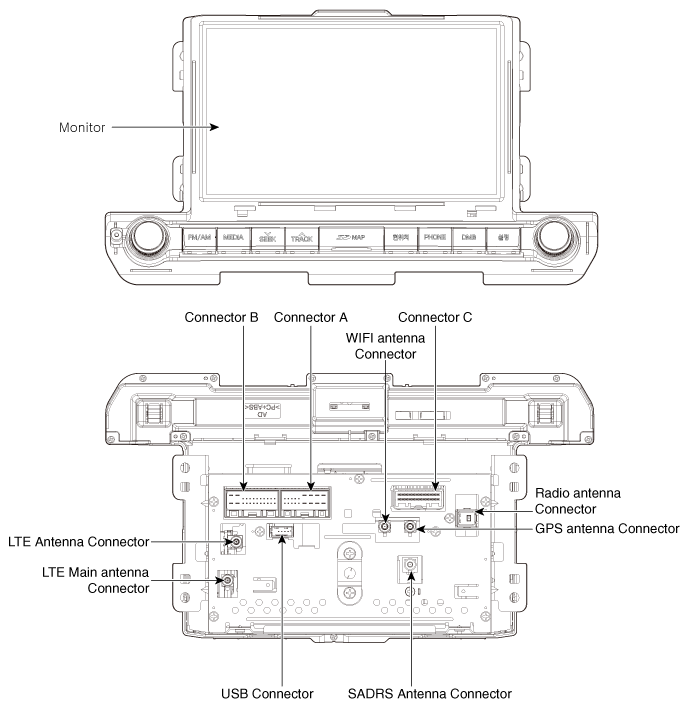

Fig 1: Audio Video Navigation Head Unit Components

G12023299

Courtesy of HYUNDAI MOTOR AMERICA
