Signal Waveform & Data

Courtesy of HYUNDAI MOTOR AMERICA

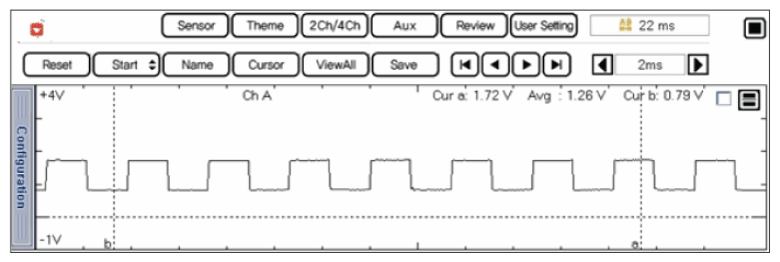

Fig.1) Normal waveform of wheel speed sensor at driving

Courtesy of HYUNDAI MOTOR AMERICA

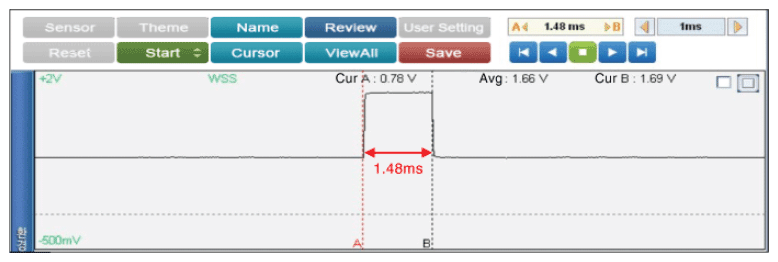

Fig.2) Normal waveform of smart type wheel speed sensor at stall

* Smart type wheel speed sensor is installed at rear axle of the SPAS applied vehicle.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

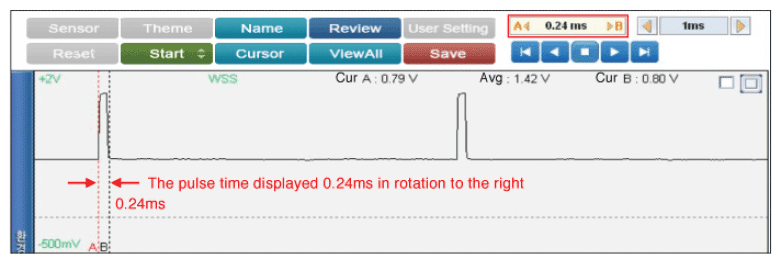

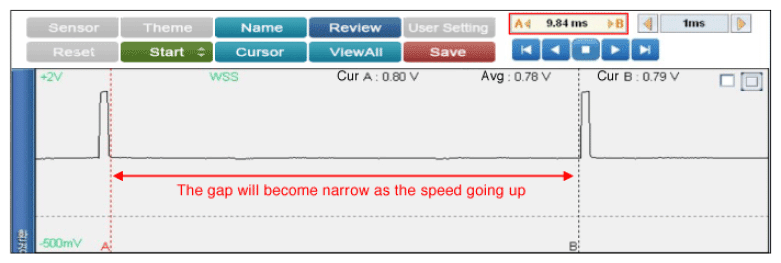

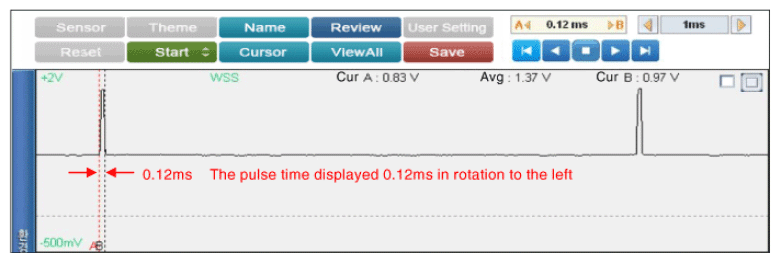

Fig.3) Normal waveform of smart type wheel speed sensor with wheel rotating

Courtesy of HYUNDAI MOTOR AMERICA

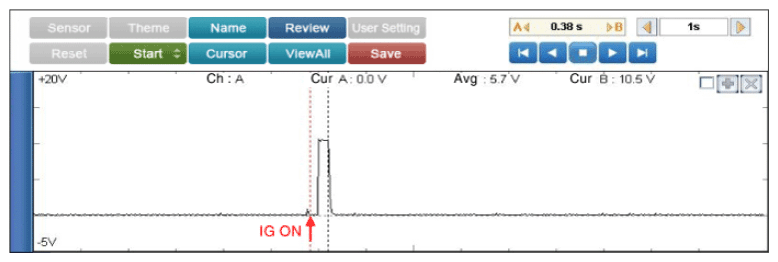

Fig.4) Normal waveform at power terminal of the wheel speed sensor with connector disconnected
