BSD Unit Alignment

  1. Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using GDS.
  2. Select "BSD Radar Calibration" procedure in BSD system.
    G12645598Courtesy of HYUNDAI MOTOR AMERICA

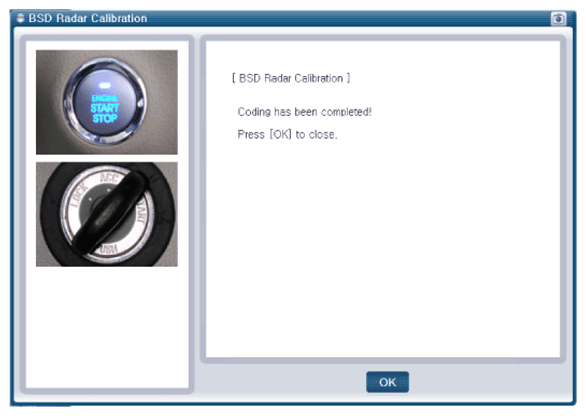

  3. Perform the "BSD Radar Calibration" procedure according to the GDS screen message below.
    G12645599Courtesy of HYUNDAI MOTOR AMERICA
