Components Locations (2)

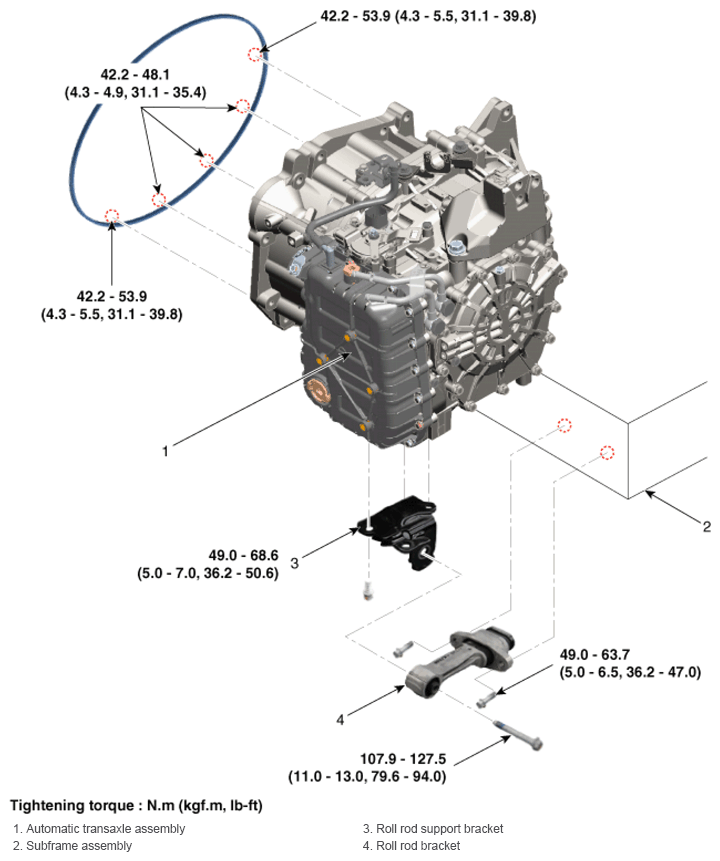

Fig 1: Locating Automatic Transaxle Components With Torque Specification (2)
G12646721Courtesy of HYUNDAI MOTOR AMERICA
