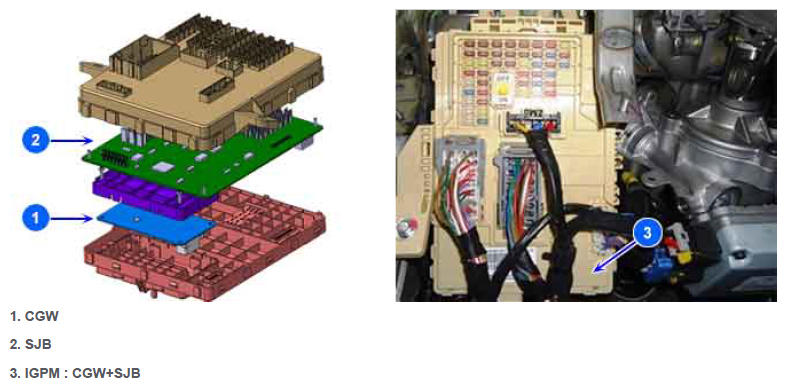

Component Location

G12635298Courtesy of HYUNDAI MOTOR AMERICA
NOTE: CGW  (Central GateWay): "GATEWAY"
SJB  (Smart Junction Block): "IPS CONTROL MODULE"
IGPM  (Integrated Central control Unit, "GATEWAY"+"IPS CONTROL MODULE"): "IGPM"
