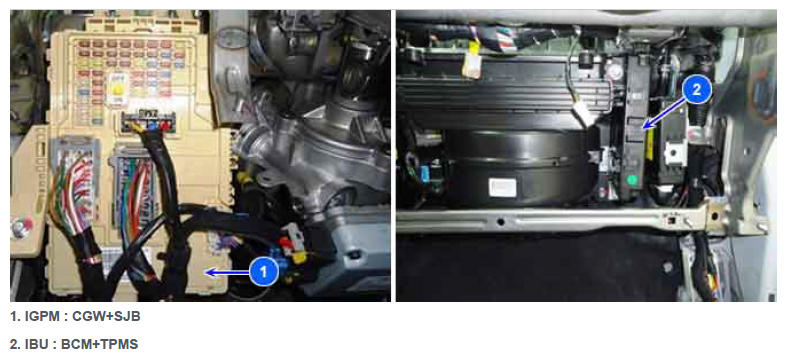

Component Location
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
IGPM
(Integrated Central control Unit, "GATEWAY"+"IPS CONTROL MODULE"): "IGPM"
IBU
(Integrated Body control Unit): "BCM" (BCM + TPMS)
BCM
(Body Control Module): "BCM"
TPMS
(Tire Pressure Monitoring System): "BCM"
