Description And Operation: Description: Notes

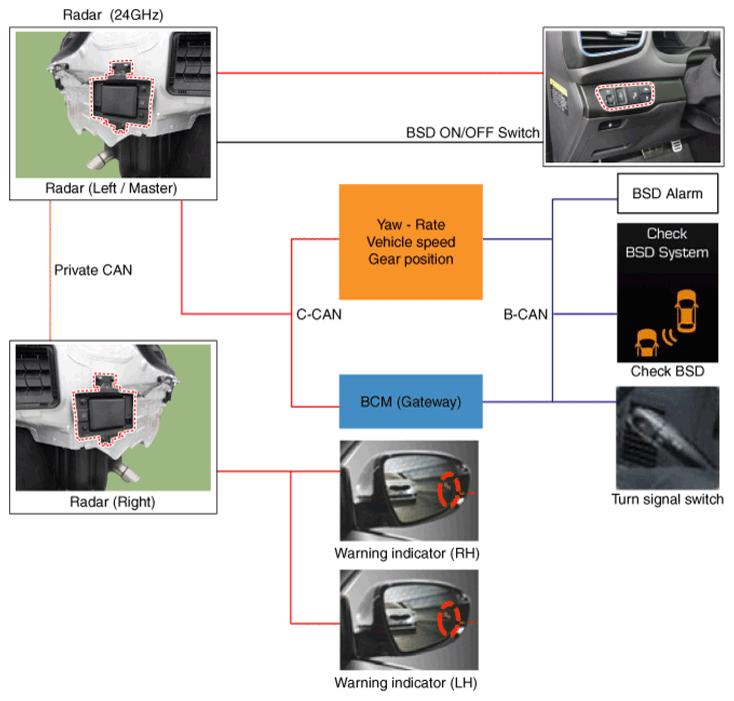

BSD is a system that measures the relative speed and distance from the following vehicles by using two electromagnetic wave radar sensors attached to the rear bumper, and detects any vehicle within the blind spot zone and gives off alarm (visual and auditory).
- Blind Spot Detection (BSD): Senses other vehicles in the BSD zone and turns on the BSD warning lamp for the driver.
Warning lamp starts blinking when the driver turns on the turn signal lamp to enter the lane where another vehicle is driving.
- Lane Change Assist (LCA): Senses other vehicles approaching at high speed in the BSD zone and turns on the BSD warning lamp for the driver.
Warning lamp starts blinking when the driver turns on the turn signal lamp without recognizing any sudden approaching vehicle from that direction.
- Rear Cross Traffic Alert (RCTA): When the vehicle is on the reverse, the RCTA generates alarm to alert another vehicle approaching from the rear and side.
