Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the lower crash pad switch assembly (A) after disengaging the retaining clips.
    G12645601Courtesy of HYUNDAI MOTOR AMERICA

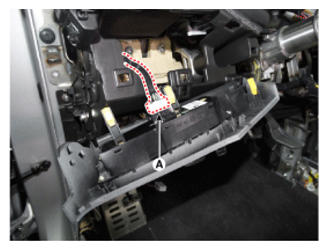

  3. Disconnect the rheostat switch connector (A).
    G12645602Courtesy of HYUNDAI MOTOR AMERICA
    G12645603Courtesy of HYUNDAI MOTOR AMERICA

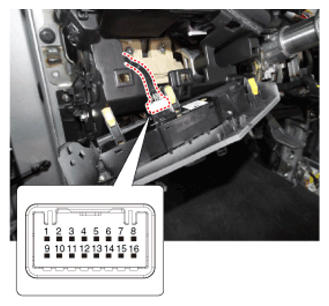

  4. Operate the BSD switch, then check for continuity between terminals of BSD switch connector.
    G12645604Courtesy of HYUNDAI MOTOR AMERICA
