Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.

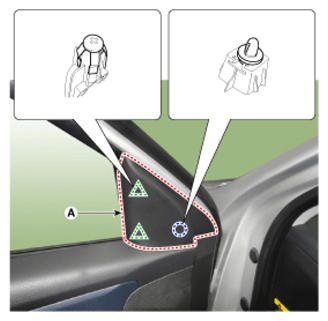

  2. Remove the front door quadrant inner cover (A).
    G12645607Courtesy of HYUNDAI MOTOR AMERICA

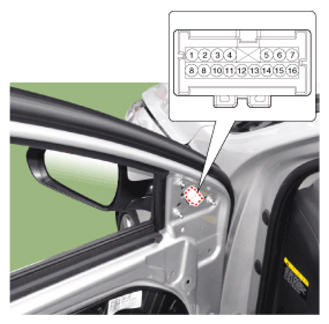

  3. Disconnect the power door mirror connector from the harness.
    G12645608Courtesy of HYUNDAI MOTOR AMERICA
  4. Apply battery voltage to each terminal as displayed in the table and verify that the mirror operates properly.

    [BSD Indicator]

    G12645609Courtesy of HYUNDAI MOTOR AMERICA
