Repair Procedures: Removal

Information

• In case of bad quality or poor focus, be sure to check the Camera Lens surface condition and foreign materials.

1. Disconnect the negative (-) battery terminal.
2. Remove the Tailgate Trim.

   (Refer to Body - "Tailgate Trim" LIFTGATE TRIM )

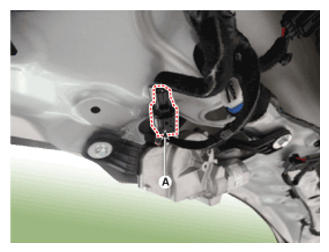

3. Disconnect the rear view camera connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

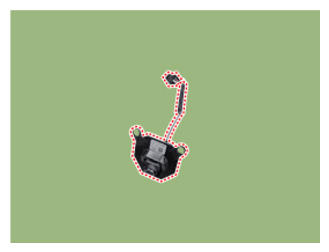

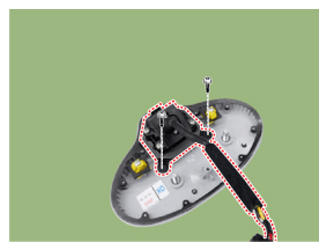

4. Remove the rear view camera assembly after loosening the mounting screws.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA
