Circuit Diagram

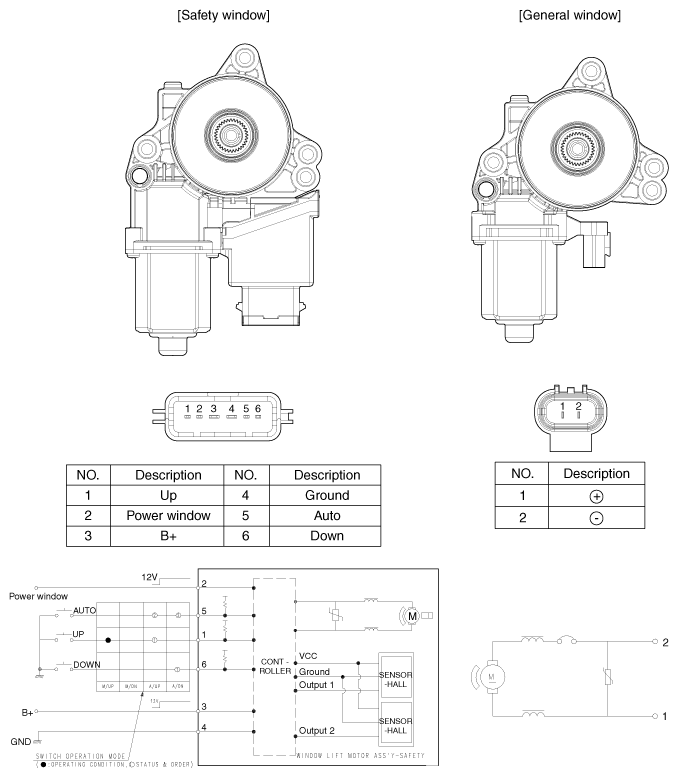

Fig 1: View Of Power Window Motor & Circuit Diagram

G12126418

Courtesy of HYUNDAI MOTOR AMERICA
