Roof Trim Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
- Front seat
  (Refer to "FRONT SEAT ")
- Rear seat
  (Refer to "REAR SEAT ")
- Sunvisor
- Overhead console
- Garment hook assembly
- Assist handle
- Front pillar trim
  (Refer to "INTERIOR TRIM ")
- Front door scuff trim & Rear door scuff trim
  (Refer to "INTERIOR TRIM ")
- Center pillar lower trim & Center pillar upper trim
  (Refer to "INTERIOR TRIM ")
- Luggage side trim
  (Refer to "INTERIOR TRIM ")
- Rear pillar trim
  (Refer to "INTERIOR TRIM ")
Remove the ECM mirror cover (B).
Disconnect the ECM mirror connector (A).

Fig 1: Disconnecting ECM Mirror Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A) and the mounting clips in the front pillar.

Fig 2: Disconnecting Connector & Mounting Clips In Front Pillar
Courtesy of HYUNDAI MOTOR AMERICA

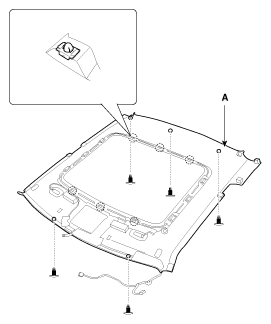

Remove the clips and roof trim (A).

Fig 3: Removing Clips And Roof Trim
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.

NOTE:
