Section 26 (Engine Starting System - 1.6L T-GDI): Troubleshooting

WARNING: This page is about a different variant/trim than selected.

NOTE:

The battery must be in good condition and fully charged for this troubleshooting.

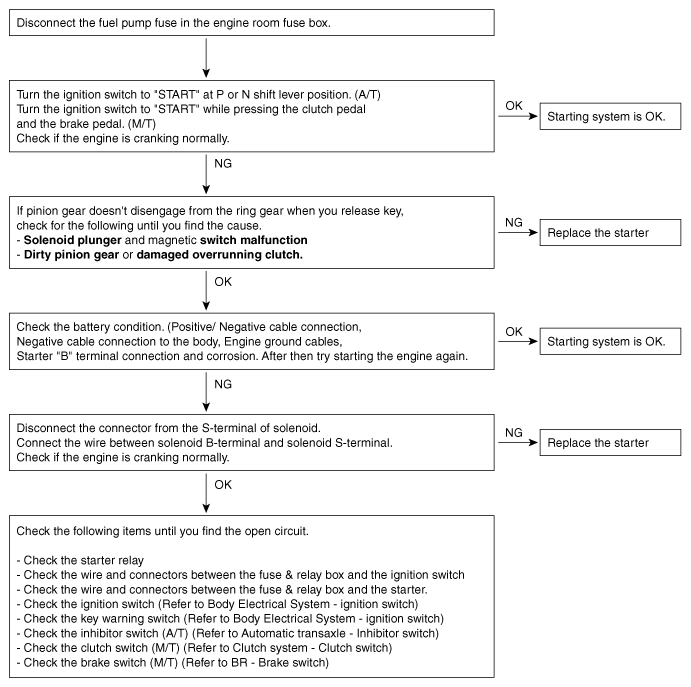

Fig 1: Starting System Troubleshooting Flow Chart

Courtesy of HYUNDAI MOTOR AMERICA
