Section 34 (4WD Control System Diagnosis)
>>
DTC U0122: Lost Communication With Vehicle Dynamics Control Module
>>
Specification
>>
CAN Signal: high & low
CAN Signal: high & low
WARNING:
This page is about a different variant/trim than selected.

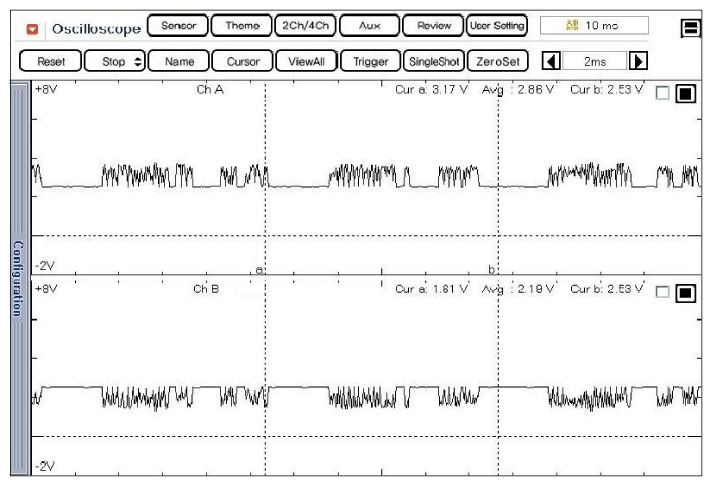

Fig 1: Scantool Display - CAN High And Low Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
