Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

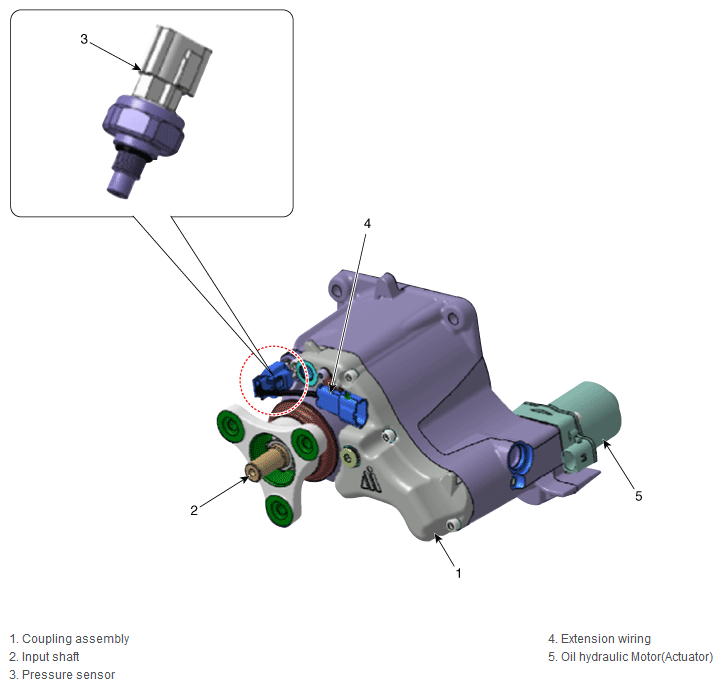

Fig 1: Direct Electro Hydraulic Actuator Coupling Components
G12040895Courtesy of HYUNDAI MOTOR AMERICA
