Circuit Diagram

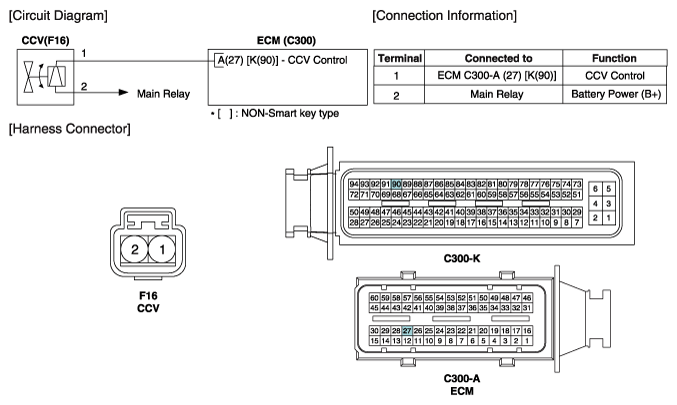

Fig 1: Canister Close Valve Circuit, Connector Terminals And Description Chart

G12039444

Courtesy of HYUNDAI MOTOR AMERICA
