Teaching Mode Procedure Description (Step by Step)

Objective: Key teaching procedure at service station

Initial state

• SMK replacement: SMK is not learnt and SMART FOB are already learnt with same PIN code
• Additional or new keys teaching: SMK are already learnt with same PIN code

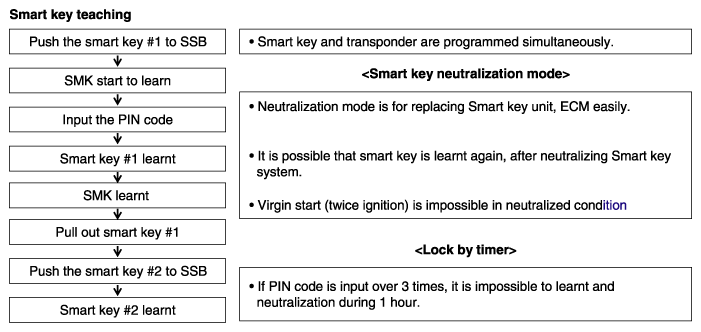

Fig 1: Smart Key Teaching Mode Procedure Chart

Courtesy of HYUNDAI MOTOR AMERICA
