Tucson Value, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio/Video/Navigation System
>>
Description And Operation
>>
Description
>>
System Block Diagram
System Block Diagram

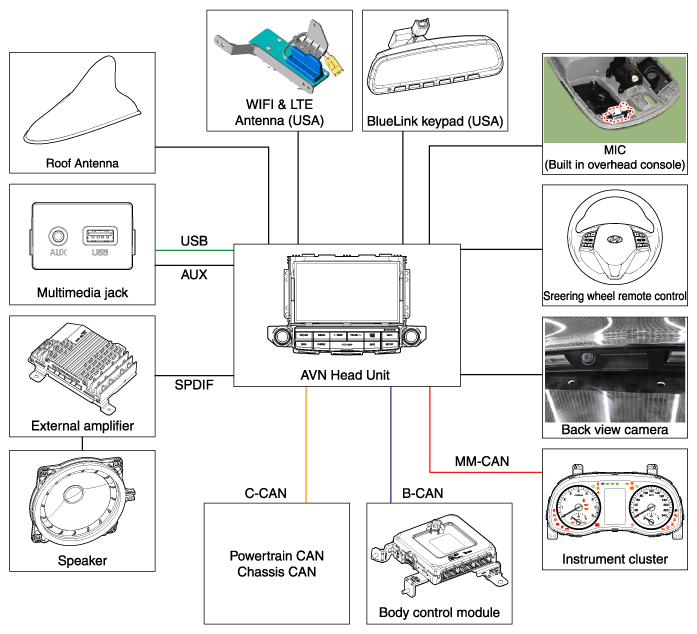

Fig 1: AVN System Block Diagram
Courtesy of HYUNDAI MOTOR AMERICA
B-CAN: Body Controller Area Network
MM-CAN: Multi-Media Controller Area Network
Courtesy of HYUNDAI MOTOR AMERICA
