Circuit Diagram

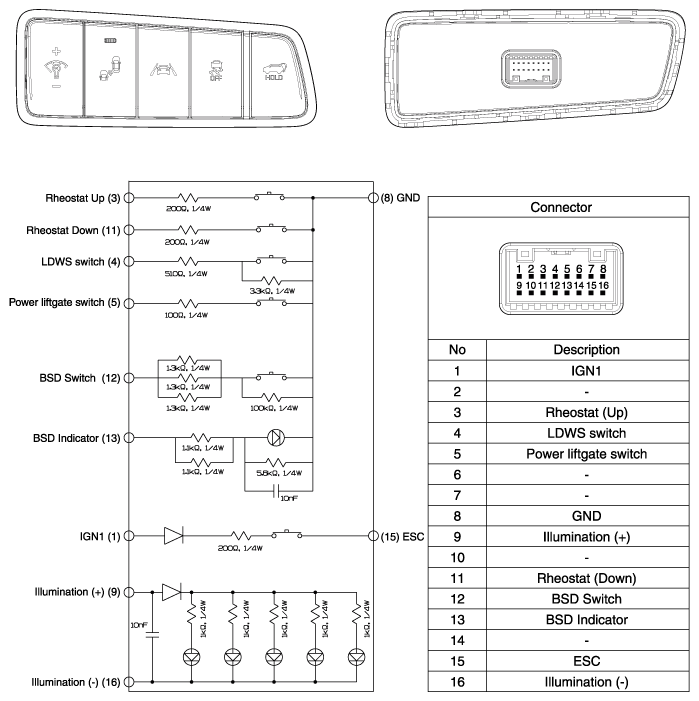

Fig 1: Blind Spot Detection Switch Circuit, Connector And Terminal Description Chart

G12043255

Courtesy of HYUNDAI MOTOR AMERICA
