Repair Procedures: Inspection

1. Disconnect the negative (-) battery terminal.

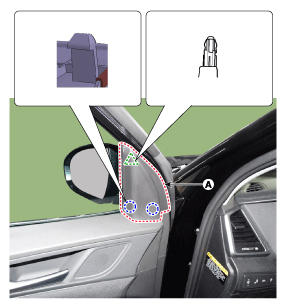

2. Remove the front door quadrant inner cover (A).
   Fig 1: Removing Front Door Quadrant Inner Cover

   Courtesy of HYUNDAI MOTOR AMERICA
3. Disconnect the power door mirror connector from the harness.
   Fig 2: Disconnecting Power Door Mirror Connector From Harness With Connector Terminals

   Courtesy of HYUNDAI MOTOR AMERICA
4. Apply battery voltage to each terminal as shown in (Fig 3) and verify that the mirror operates properly.

[BSD Indicator]

Fig 3: BSD Indicator Connector Terminals Continuity Chart

Courtesy of HYUNDAI MOTOR AMERICA
