Component Inspection

■ Actuator Test Check

1. Connect scantool to Data Link Connector (DLC)
2. IG key "ON"
3. Perform "Actuation Test" with scantool.

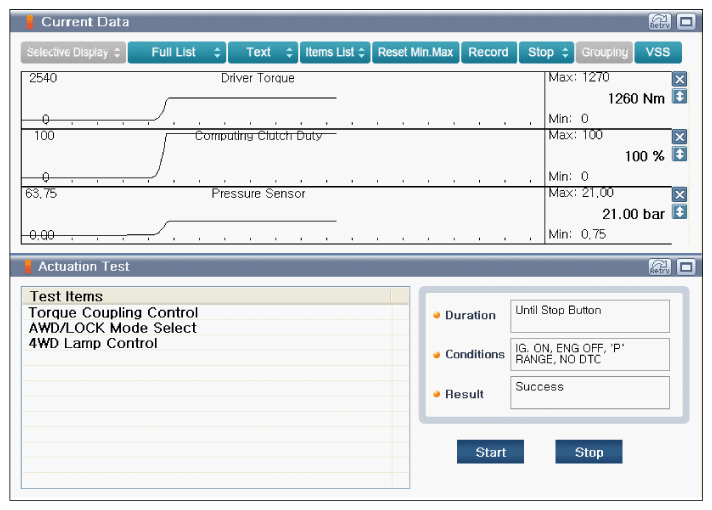

   Fig 1: Scantool Display - Current Data And Actuation Test

   Courtesy of HYUNDAI MOTOR AMERICA
4. Are any DTCs present?

   YES

   • Substitute with a known-good "Coupling" and check for proper operation. If the problem is corrected, replace "Coupling" and then go to "Verification of Vehicle Repair " procedure.

   NO

   • go to "Verification of Vehicle Repair " procedure.
