Component Location

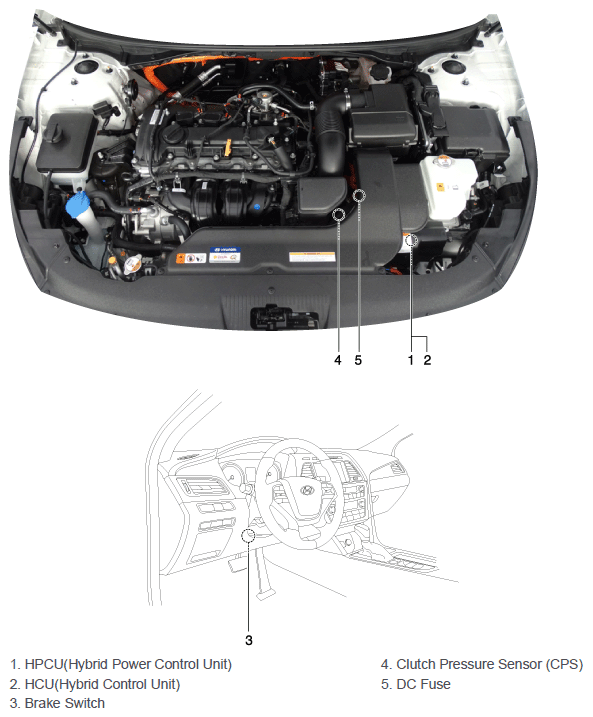

Fig 1: Hybrid Control Unit Components Location

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).

NOTE: For the location of the other control modules, refer to the appropriate service information.

HPCU (Hybrid Power Control Unit)
HCU (Hybrid Control Unit)

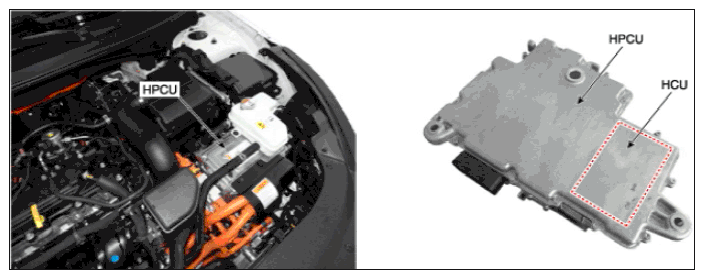

Fig 2: Hybrid Power Control Unit And Hybrid Control Unit
Courtesy of HYUNDAI MOTOR AMERICA
Brake Switch

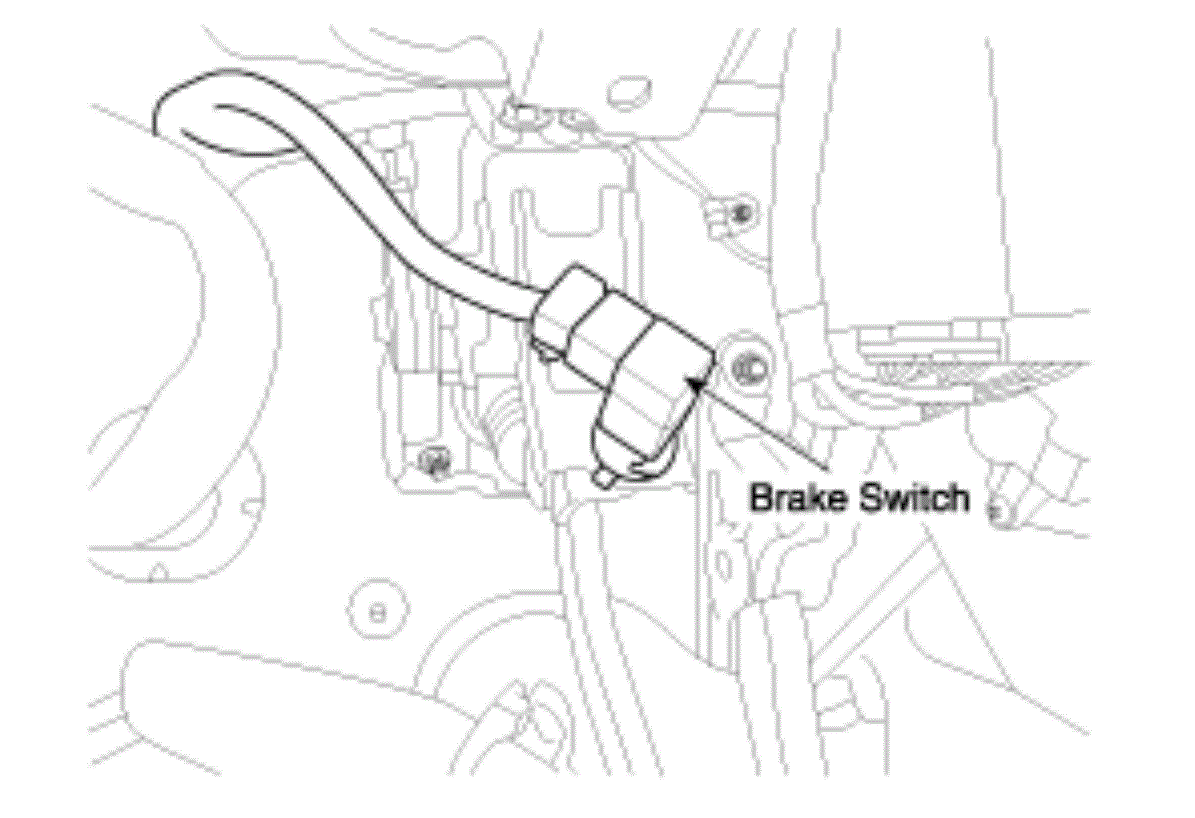

Fig 3: Brake Switch
Courtesy of HYUNDAI MOTOR AMERICA
Clutch Pressure Sensor (CPS)

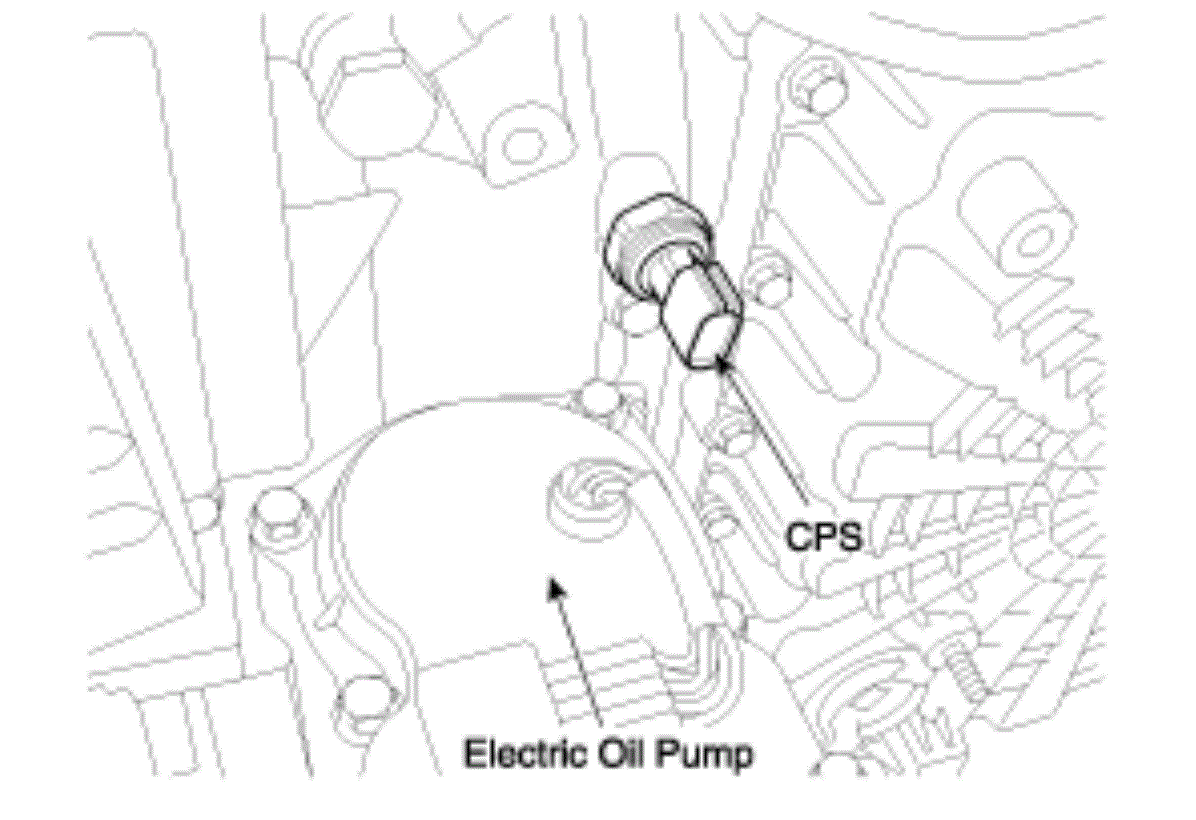

Fig 4: Clutch Pressure Sensor (CPS)
Courtesy of HYUNDAI MOTOR AMERICA
DC Fuse

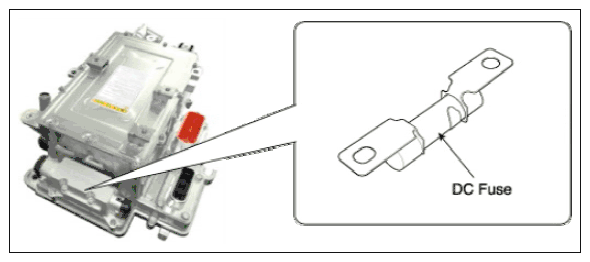

Fig 5: DC Fuse
Courtesy of HYUNDAI MOTOR AMERICA
