Component Location

WARNING: This page is about a different variant/trim than selected.

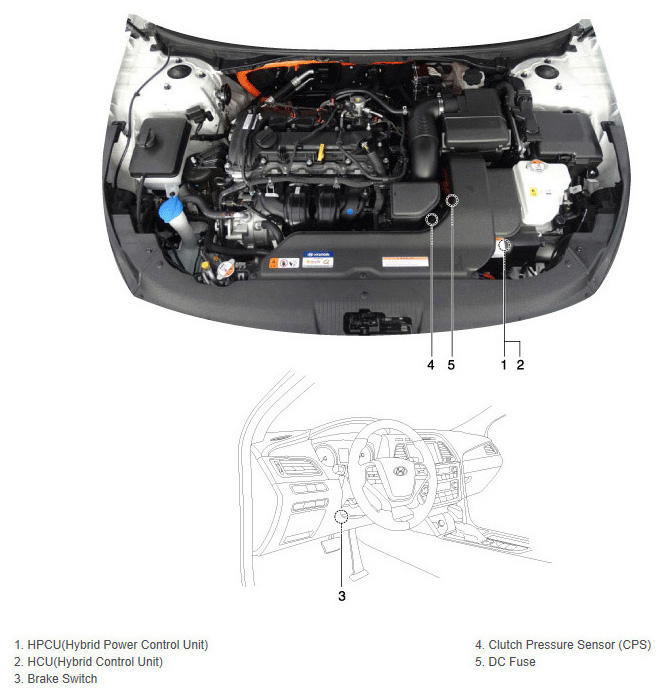

Fig 1: Hybrid Control System Components

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).

NOTE: For the location of the other control modules, refer to the relevant group.

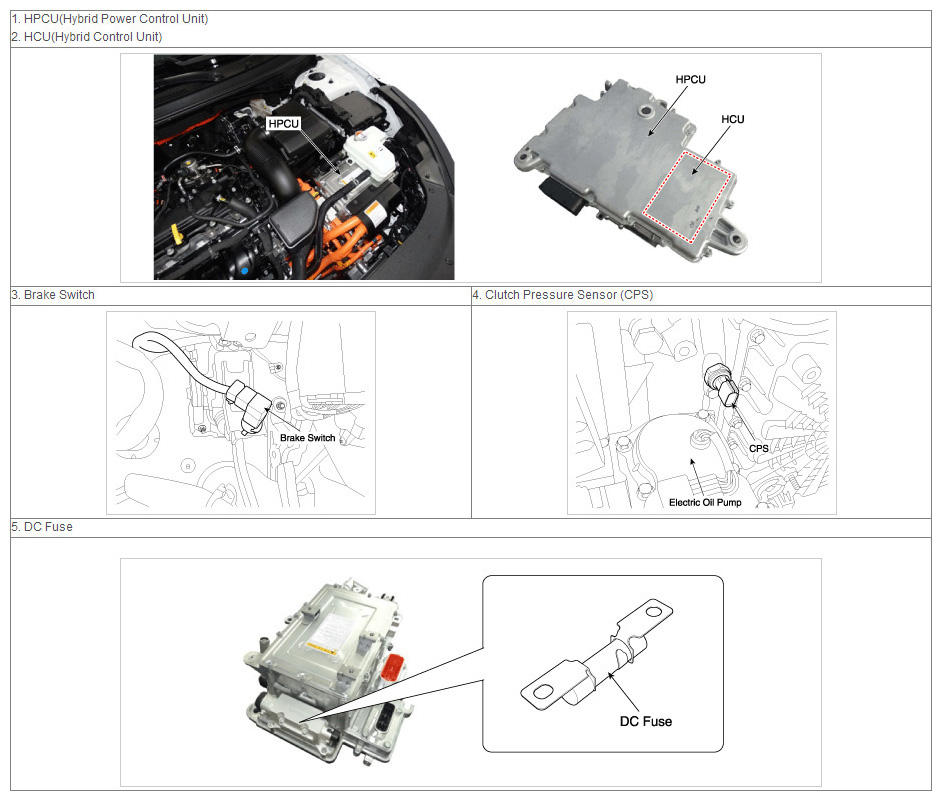

Fig 2: Hybrid Control System Components

Courtesy of HYUNDAI MOTOR AMERICA
