Component Inspection

■ Accelerator Pedal Rod Inspection

1. Verify that the accelerator pedal operate freely without binding between full closed and wide open position by operating the accelerator pedal.
2. Check for poor carpet fit under the accelerator controls pedal.
3. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure. If OK, go to next step below.

■ Accelerator Pedal voltage Inspection

1. Connect APS connector.
2. IG "ON".
3. Check sensor data below.

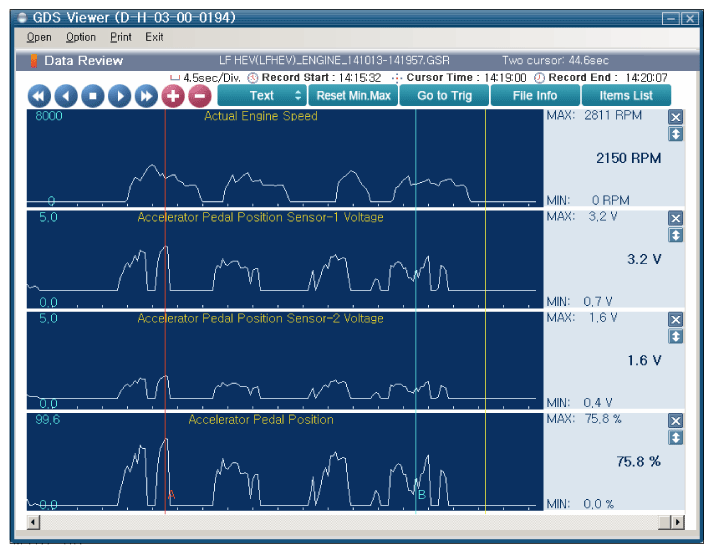

   Fig 1: Screen Display - GDS Sensor Data

   Courtesy of HYUNDAI MOTOR AMERICA
4. Data Analysis

   Condition		GDS Sensor Data
   		APS 1	APS 2
   G Key "ON& Engine "OFF"	"Output voltage s of APS1 and APS2 are in proportion to accelerating. APS2 output voltage is half of APS1 output voltage ".
   	Release a pedal fully	0.58~0.93V	0.29~0.47
   	Depress a pedal fully	3.85~4.35V	1.93~2.18V

5. Is data in accordance with "Data Analysis"?

   YES

   • Check for poor connection between PCM/ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known-good component and check for proper operation. If the problem is corrected, replace component and then go to "Verification of Vehicle Repair " procedure.
