Components and Components Location: Components

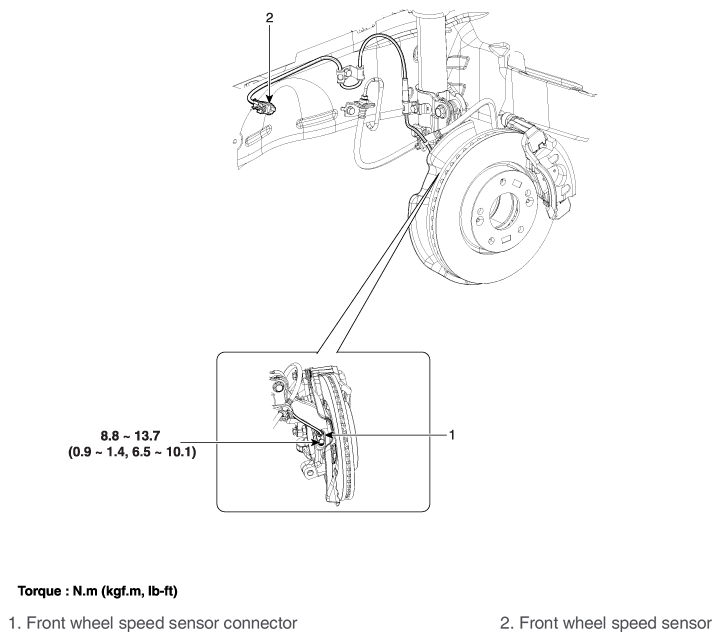

Fig 1: Front Wheel Speed Sensor Components With Torque Specification

G11668970

Courtesy of HYUNDAI MOTOR AMERICA
