Driver Power Window Module (IMS, Front Safety)

Fig 1: Driver Power Window Module (IMS, Front Safety) Circuit Diagram (1 Of 2)
G11633109Courtesy of HYUNDAI MOTOR AMERICA

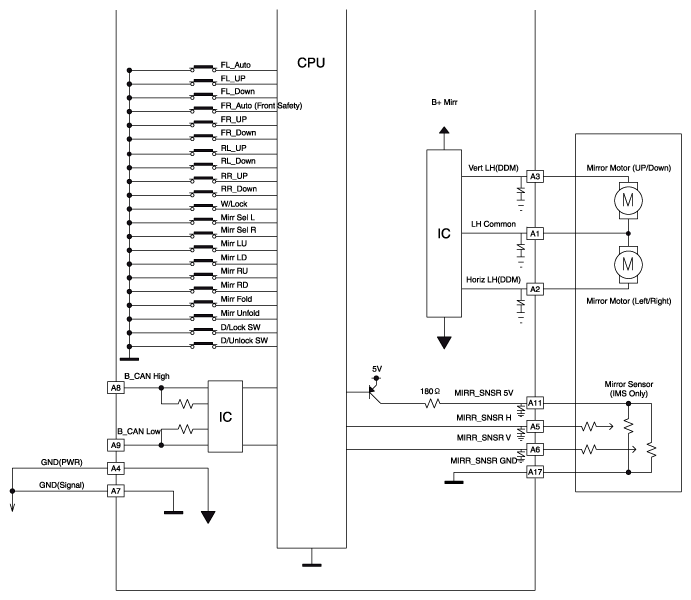

Fig 2: Driver Power Window Module (IMS, Front Safety) Circuit Diagram (2 Of 2)
G11633110Courtesy of HYUNDAI MOTOR AMERICA
