Assist Power Window Module (IMS, Safety)

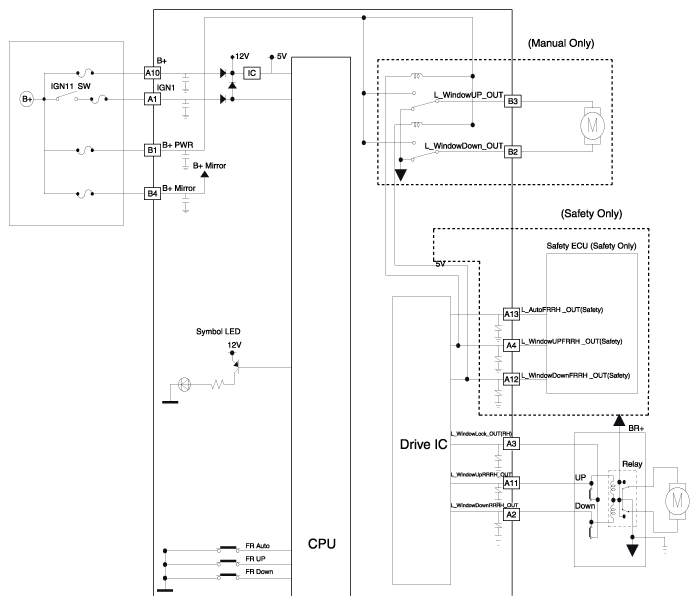

Fig 1: Assist Power Window Module (IMS, Safety) Circuit Diagram (1 Of 2)
G11633113Courtesy of HYUNDAI MOTOR AMERICA

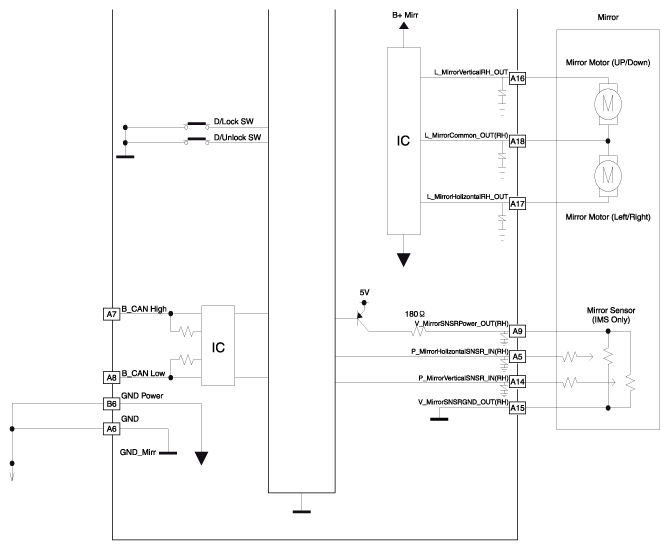

Fig 2: Assist Power Window Module (IMS, Safety) Circuit Diagram (2 Of 2)
G11633114Courtesy of HYUNDAI MOTOR AMERICA
