FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

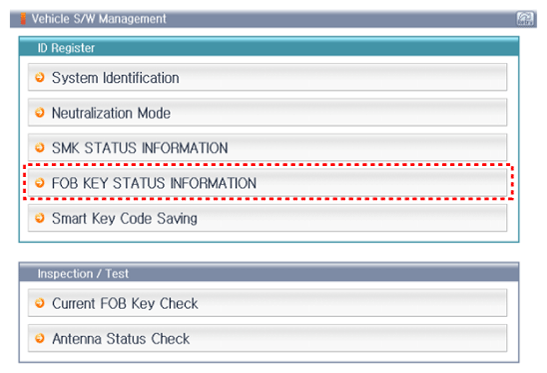

    Fig 1: Screen Display - Vehicle SW Management (1 Of 2)
    G11632812Courtesy of HYUNDAI MOTOR AMERICA

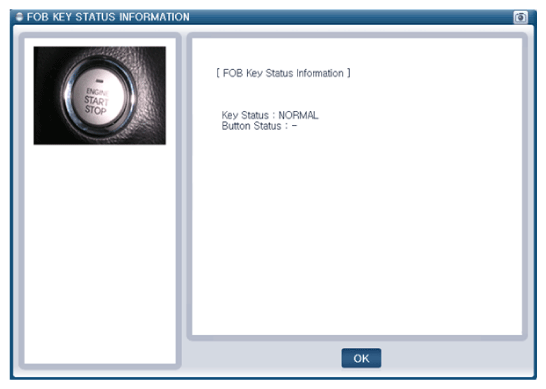

    Fig 2: Screen Display - Vehicle SW Management (2 Of 2)
    G11632813Courtesy of HYUNDAI MOTOR AMERICA
