Circuit Diagram

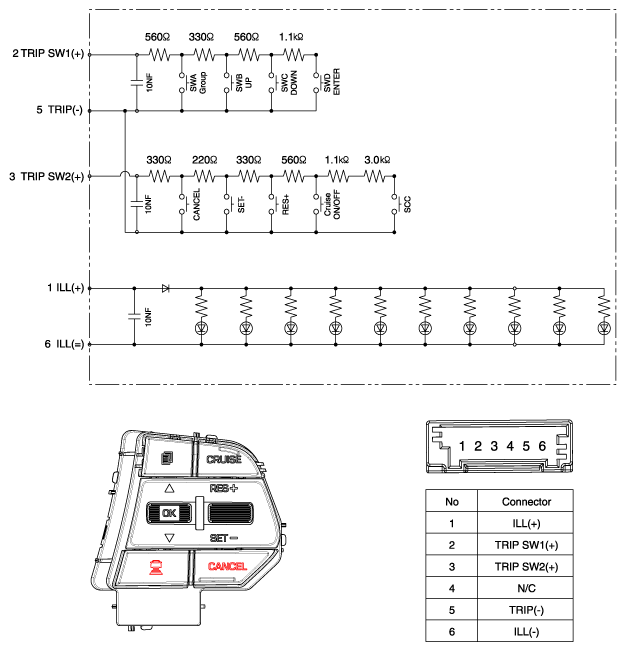

Fig 1: Smart Cruise Control Switch Schematic Diagrams

G11630853

Courtesy of HYUNDAI MOTOR AMERICA
