Home >> Hyundai >> 2017 >> Sonata Limited 2.0T >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L (Except HEV) >> Shift Lever >> Components And Components Location >> Components

Components And Components Location: Components

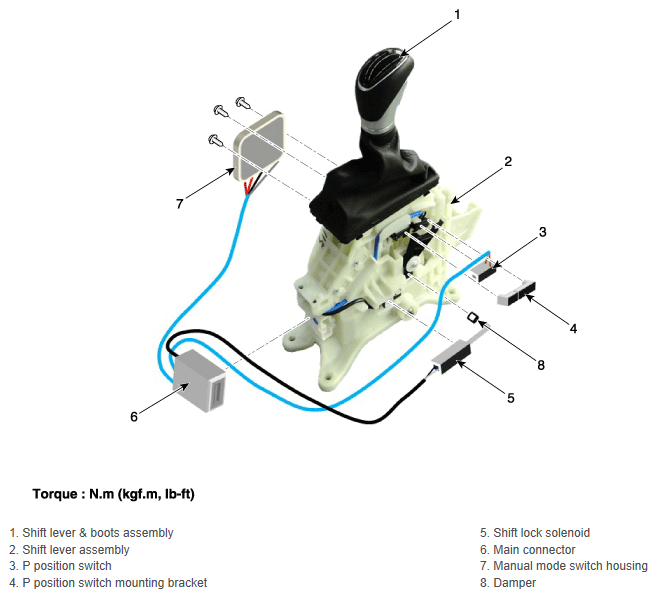

Fig 1: Shift Lever Components With Torque Specifications

G11994883

Courtesy of HYUNDAI MOTOR AMERICA
