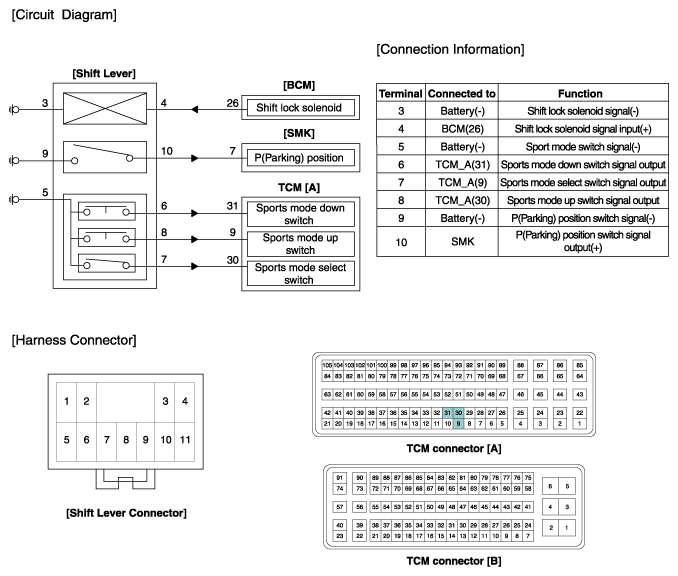

Home >> Hyundai >> 2017 >> Sonata Base >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.4L (Except HEV) >> Shift Lever >> Schematic Diagrams
