Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

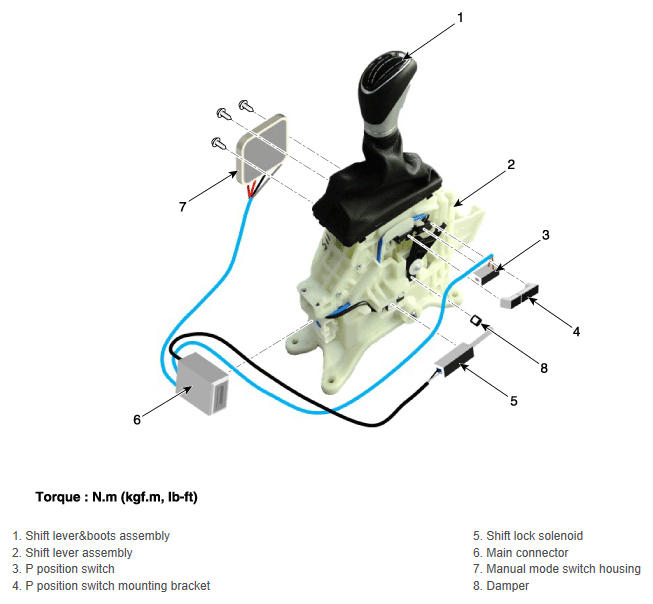

Fig 1: Shift Lever Components With Torque Specification (2 Of 2)
G12061217Courtesy of HYUNDAI MOTOR AMERICA
