[Transaxle Installation component]

WARNING: This page is about a different variant/trim than selected.

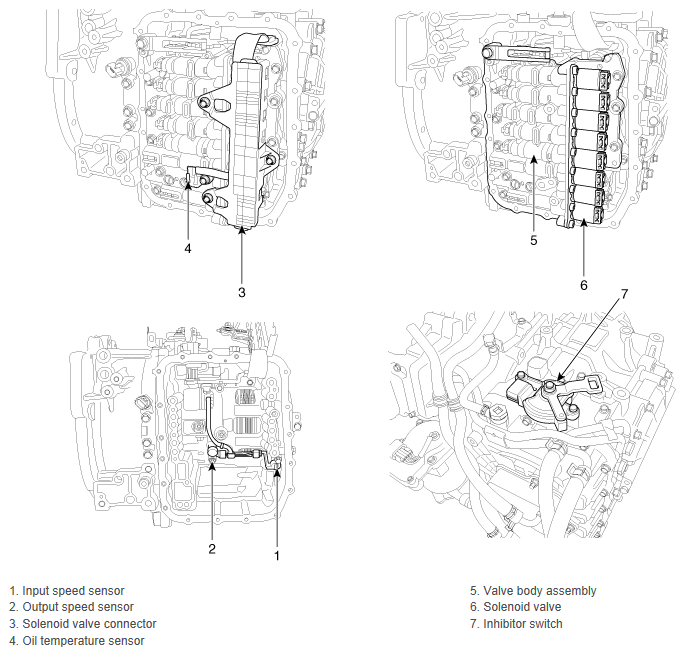

Fig 1: Automatic Transaxle Control System Components (Transaxle Installation Component)
G12061048Courtesy of HYUNDAI MOTOR AMERICA
