Component Location

WARNING: This page is about a different variant/trim than selected.

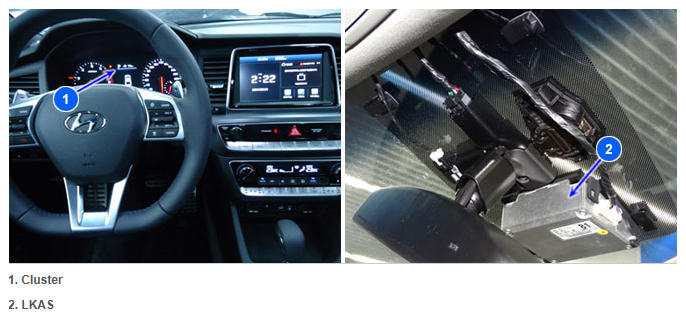

Fig 1: Components
G12059008Courtesy of HYUNDAI MOTOR AMERICA
NOTE: Cluster: "INSTRUMENT CLUSTER"
LKAS (Lane Keeping Assist System): "LANE KEEPING ASSIST MODULE"
